Modular mooring and spring buoys

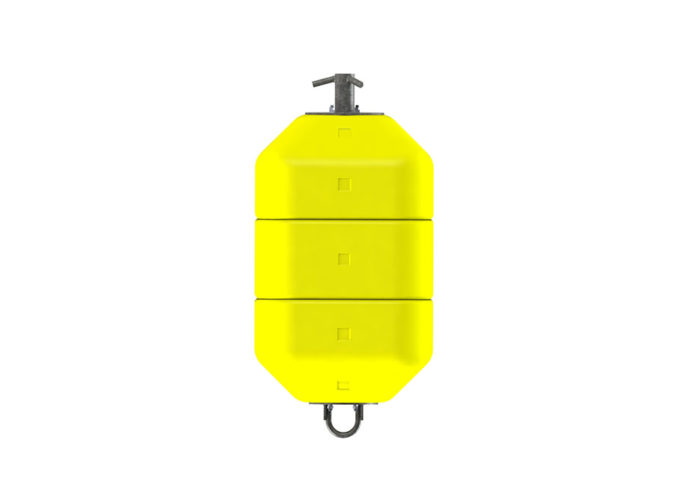

The APBXL-series represents a modular series of buoys, designed for surface and sub-sea use.
The buoys are designed to form a modular system and individual sections can therefore be added or, if necessary be removed from the assembly, to adapt to different buoyancy needs.
Available with up to 10T buoyancy
Rotomolded from 10 mm thick polyethylene (PE) and filled with polystyrene foam (EPS), polyurethane foam (PUR) or other materials depending on the application.
The buoys are equipped with hot dip galvanized steel armatures, 4 full-length hot dip galvanized steel bolts and continuous chain through the center. The steel armatures and chain vary from application to application depending on whether it is for aquaculture or energy/offshore, and surface or subsea installations. Standard and custom solutions available.
The buoys include an integrated fixture for light and different other equipment easily to be mounted.
Configuration for Aquaculture / Fish Farming
Designed for surface use with polystyrene foam filling (EPS) and equipped with yellow daylight reflective tapes on all 4 sides. The buoys include an integrated pipe as part of the top disc, allowing for light and different other equipment easily to be mounted.
Configuration for Offshore Energy and Subsea
The APBXL buoys are produced with steel armatures for offshore applications, filled with polystyrene foam (EPS), polyurethane foam (PUR) or other materials depending on the application.
The buoys can easily be custom made, specially designed to meet the needs of the customer. They can be equipped with different steel armatures, different dimensions of continuous chain through the center, and different materials adapted to the use either on the surface or submerged to various depths. Polyform has an experienced research and development department and can in cooperation with the customer come up with the desired solutions.
|Type||Volume||Weight||Net buoyancy||Length||Width||Product sheet|
|APBXL 6000||6650 liter||650 kg||6000 kg||173 cm||233 cm|
|APBXL 8000||8950 liter||1050 kg||7900 kg||235 cm||233 cm|
|APBXL 10 000||11 200 liter||1330 kg||9900 Kg||275 cm||233 cm|
